PRESSING SYSTEM

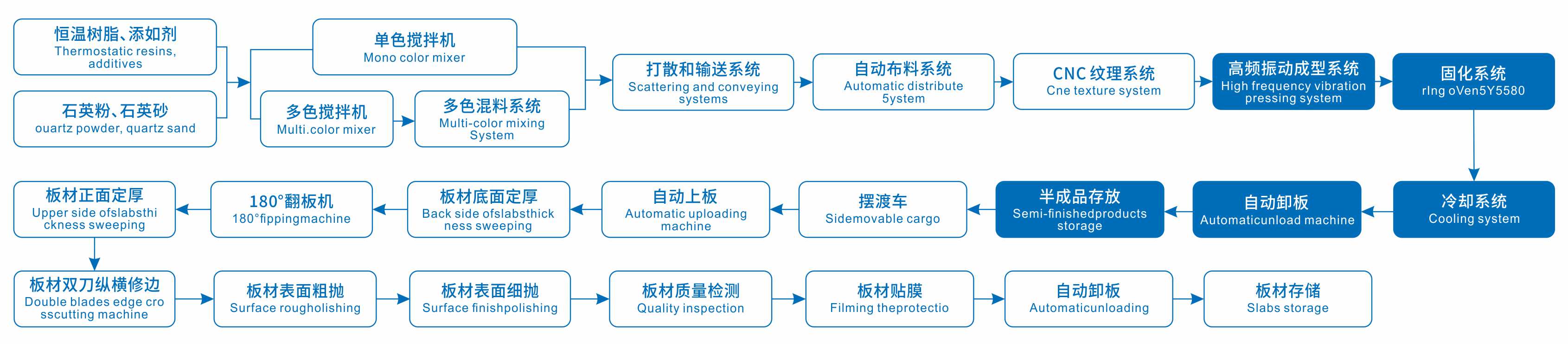

The quartz stone pressing system is a crucial part of the quartz stone production line, mainly composed of an automatic slab press, hydraulic system, vacuum unit, belt conveyor, curing oven, cooling box, and a fully automatic control system. Sinone's pioneering air spring press utilizes high pressure to compact the blended quartz stone materials into precise forms and dimensions. This advanced system guarantees the production of quartz stone slabs with exceptional flatness, zero porosity, consistent texture, and superior density and hardness.

PRESSING SYSTEM
Sinone Quartz Stone Press

The Sinone press is a high-performance and energy-efficient molding machine engineered to ensure the rapid formation of quartz stone slabs under conditions of high vacuum and high-frequency vibration. This effectively guarantees exceptional slab flatness, consistent texture, high density, superior hardness, and zero porosity.

The entire pressing cycle is fully automated: material feeding - vacuum application - pressurization - vibration - pressure release - slab discharge.


Vertical Slab Curing Oven

Our vertical slab curing oven utilizes a 2-steel-plate, 1-hydraulic-lift clamping mechanism and employs electric/natural gas heating of thermal oil. It incorporates a patented thermal conductive plate processing technique featuring a longitudinal deep-hole structure.

The internal oil pathways within the conductive plates are designed with minimal turns, significantly reducing thermal oil flow resistance, enhancing heat transfer efficiency, ensuring more uniform heating temperatures, and minimizing energy consumption.


Automated Vacuum Suction Lifter

Our automated vacuum suction lifter features a cylinder-driven lifting mechanism and linear guide rails for movement.

Equipped with high-performance vacuum suction cups, it ensures efficient and stable material handling, assembly operations, and more.


Electric Chain Lifting Conveyor

Our lifter utilizes an electric chain-driven elevation system.

It incorporates chain and sprocket-assisted lifting, includes a comprehensive four-sided safety net, and automatically transports the slabs to the vertical cooling unit.


Vertical Cooling Box

The vertical cooling box is specialized equipment for cooling processed quartz stone materials. It features a vertical structural design, an iron bar roller frame with a roller spacing of 300mm for easy placement and removal of quartz stone materials.

Rapid cooling is achieved through a pressurized circulating airflow generated by dual centrifugal fans, ensuring optimal processing quality and material performance. Furthermore, it utilizes a cycloidal pin gear reducer, known for its stable operation and minimal downtime.
